Pattern Development
Core Making
Moulding
Melting
Creating precise tooling patterns is the critical first step. Our engineering team designs and manufactures patterns to exact specifications, ensuring dimensional accuracy for subsequent stages.
Complex internal geometries are formed using high-quality sand cores. These cores are meticulously crafted and baked to withstand the extreme temperatures of molten metal, preventing defects.
Sand moulds are prepared using advanced compaction techniques. This stage ensures a robust and stable mould cavity, crucial for achieving the desired surface finish and structural integrity of the casting.

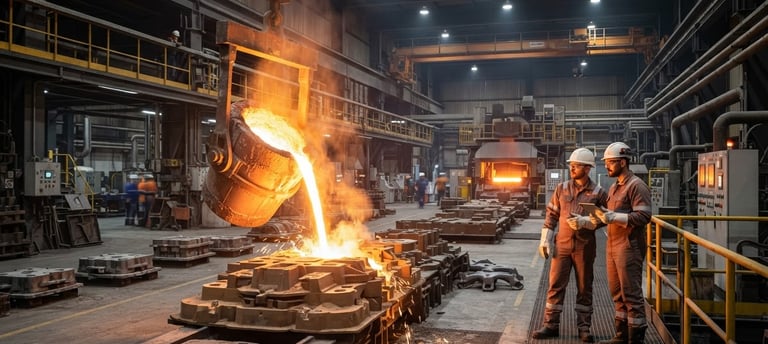

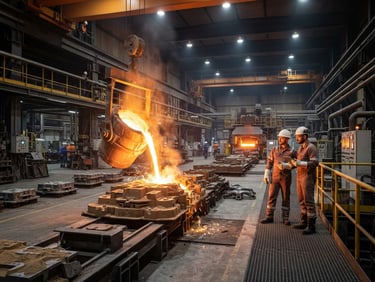

High-grade raw materials are melted in induction furnaces under strict metallurgical control. Temperature and alloy composition are precisely monitored to achieve the required cast iron grade.
Refinement & Verification
Fettling
CNC Machining
Inspection
Quality Testing
Once cooled, castings undergo fettling to remove excess material such as risers, gates, and parting line flash. This process cleans the casting and prepares it for further processing.
Precision machining is performed on advanced CNC machines to achieve tight dimensional tolerances and superior surface finishes, meeting the exact specifications of complex components.
Every casting undergoes comprehensive visual and dimensional inspection. Our quality engineers use calibrated instruments to verify all critical parameters against engineering drawings.
Advanced testing includes spectrometer analysis for chemical composition, hardness testing, and mechanical property evaluation. This guarantees metallurgical compliance and performance.
Rigorous Quality Assurance
Hardness Testing
Each batch undergoes comprehensive hardness testing to verify mechanical properties. This critical step confirms the material's resistance to indentation and wear, essential for component durability.
Dimensional Inspection
Our dedicated inspection teams utilize advanced CMMs and precision gauges for micron-level dimensional verification. Zero-defect testing guarantees components fit seamlessly into your assemblies.
Ready to partner with a foundry that guarantees precision and reliability? Discuss your specific casting requirements or schedule a factory floor tour with our engineering team today.
